Model

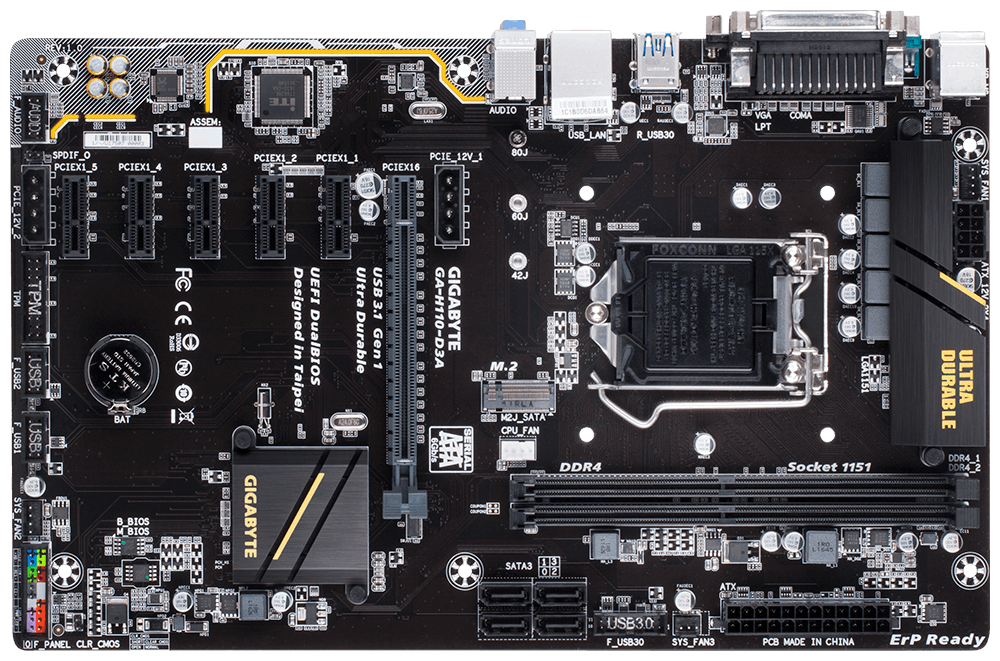

Bảng mạch chủ Gigabyte H110-D3A

CPU

Support for 7^th/6^th Generation Intel^® Core™ i7/Intel^® Core™ i5/Intel^® Core™ i3/Intel^® Pentium^®/Intel^® Celeron^® in the LGA1151 package

L3 cache varies with CPU

Chipset

Intel^® H110 Express Chipset

Bộ nhớ

- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

- Dual channel memory architecture

- Support for DDR4 2400/2133 MHz memory modules

- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

- Support for Extreme Memory Profile (XMP) memory modules

* To support 2400 MHz or XMP memory, you must install a 7^th generation processor.

Card đồ họa tích hợp

Integrated Graphics Processor - Intel^® HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Maximum shared memory of 1 GB

Âm thanh

- Realtek^® ALC887 codec

- High Definition Audio

- 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

- Support for S/PDIF Out

LAN

Realtek^® GbE LAN chip (10/100/1000 Mbit)

Khe cắm mở rộng

- 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

- 5 x PCI Express x1 slots

(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Giao diện lưu trữ

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)

- 4 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB

- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Kết nối I/O bên trong

- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 2 x PCIe power connectors

- 1 x CPU fan header

- 3 x system fan headers

- 4 x SATA 6Gb/s connectors

- 1 x M.2 Socket 3 connector

- 1 x front panel header

- 1 x front panel audio header

- 1 x S/PDIF Out header

- 1 x USB 3.1 Gen 1 header

- 2 x USB 2.0/1.1 headers

- 1 x Trusted Platform Module (TPM) header

- 1 x Clear CMOS jumper

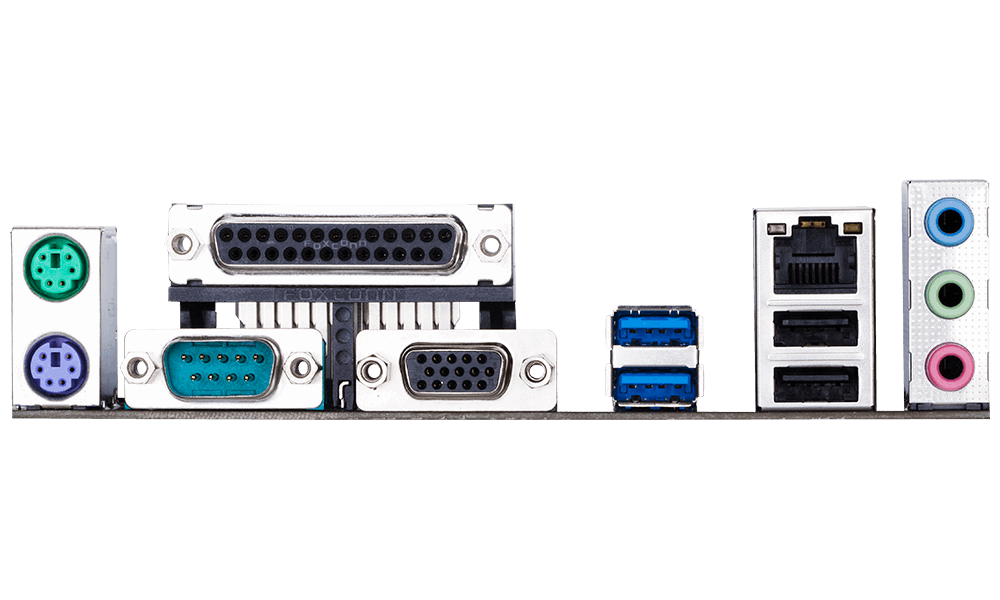

Kết nối bảng phía sau

- 1 x PS/2 mouse port

- 1 x PS/2 Keyboard port

- 1 x parallel port

- 1 x serial port

- 1 x D-Sub port

- 2 x USB 3.1 Gen 1 ports

- 2 x USB 2.0/1.1 ports

- 1 x RJ-45 port

- 3 x audio jacks (Line In, Line Out, Mic In)

Điều khiển I/O

iTE^® I/O Controller Chip

BIOS

- 2 x 64 Mbit flash

- Use of licensed AMI UEFI BIOS

- Support for DualBIOS™

- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hệ số khuôn

ATX Form Factor; 30.5cm x 19.0cm
