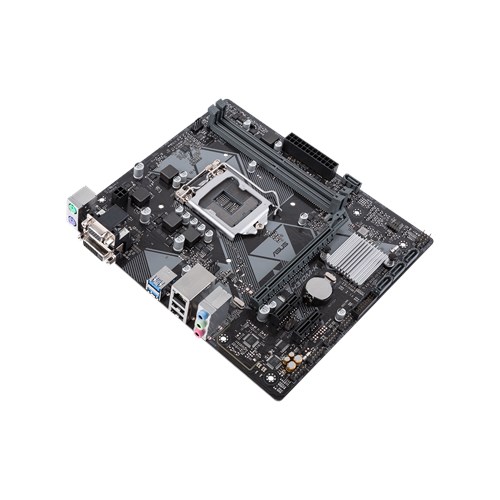

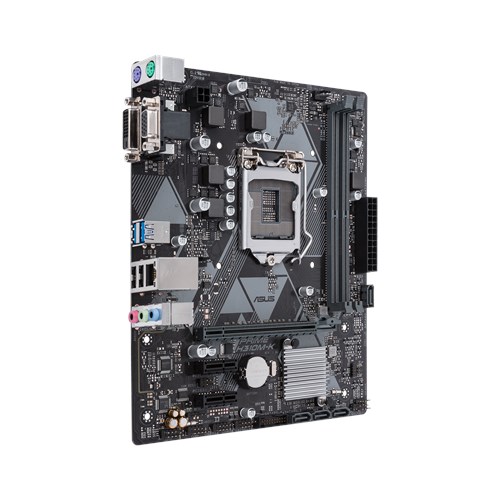

Bảng mạch chủ Asus Prime H310M-K: Intel H310 SK1151/2xDDR4 2133/1*PCI-e x 16+2*PCI-e/4xSATA 6Gb/s /LAN1000/D-sub, DVI

• Chip hỗ trợ

  Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list

• Chipset

  Intel® H310

• Bộ nhớ

  2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor
  ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

• VGA hỗ trợ

  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : DVI-D/D-Sub ports
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
  - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB (for iGPU exclusively)
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

• Khe mở rộng

  1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
  2 x PCIe 2.0 x1

• Storage

  Intel® H310 Chipset :
  4 x SATA 6Gb/s port(s), gray,

• LAN

  Realtek® RTL8111H, 1 x Gigabit LAN

• Audio

  Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• USB Ports

  Intel® H310 Chipset :
  4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
  Intel® H310 Chipset :
  6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)

• Tính năng

  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: 4 Phase digital power design
  ASUS OptiMem：
  - Optimem (Improved DDR4 stability)
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - PC Cleaner
  - File Transfer
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-DIMM

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
  2 x USB 2.0
  3 x Audio jack(s)

• Internal I/O Ports

  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 4-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x Speaker connector

• Windows khuyến nghị

  Windows® 10 64-bit

• Kiểu

  Micro ATX Form Factor
  8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
